Designing Web Interfaces

 Principles and Patterns for RICH Interaction



-O'Reilly Webcast: Designing Web Interfaces

10 Standard Screen Patterns

As learning from the O'Reilly mentioned in an earlier post on his Webcast 'Designing Web Interfaces', I understand designers don't want to limit blog to just the principles and patterns found in the book. For that, as he said,  you can check out his design on Explore the Book section. In the spirit of that, I want to share an additional set of principles and patterns I have been using for my RVJ.

This is the first article in a three part series.

1. Standard Screen Patterns: 12 patterns w/100 examples
2. Essential Controls: 30 controls for RIA design and development
3. Components for Commonly Requested Features: 15 patterns and examples



01. Master/Detail

Master/Detail screen pattern can be vertical or horizontal. Ideal for creating an efficient user experience by allowing the user to stay in the same screen while navigating between items. Horizontal layout is a good choice when the user needs to see more information in the master list than just a few identifiers- or when the master view is comprised of a set of items that each have additional details. Click on thumbnail for larger image OR download the PDF.

02. Column Browse

The Browse screen pattern can be vertical or horizontal. Ideal for creating an custom user experience by allowing the user to start from various entry points for navigating to the item(s) they are interested in.

03. Search/ Results

The Search screen pattern can range from very simple to quite advanced. Ideal for creating an efficient user experience by allowing the user to navigate directly to an item or set of items meeting specific criteria.

04. Filter Dataset

The Filter Dataset screen pattern can be vertical or horizontal. Ideal for creating an efficient user experience by allowing the user to refine a set of known data, or further refine search results.

For example,

05. Forms

All Form screens should be approached with a solid understanding of usability and design best practices. Refer to “Web Form Design: Filling in the Blanks” by Luke Wroblewski for reference.

For examples,



06. Palette/ Canvas

The Palette/ Canvas screen pattern is seldom the right pattern to apply, but it is the only pattern for documenting or creating: linear or non-liner processes; flow diagrams; screen layouts; design/diagram with physical size or layout constraints.

07. Dashboard

A well designed Dashboard will provide: key information at a glance, real time data, easy to read graphics, clear entry points for exploration This is typically not achieved by displaying a single screen of metrics (either in a big table, or just a bunch of graphs). Providing a high degree of customization is no substitute for user research and testing. Stephen Few has a nice book on this topic Information Dashboard Design: The Effective Visual Communication of Data .

08. Spreadsheet

The Spreadsheet screen pattern is ideal for creating an efficient user experience by allowing the user to easily scan, edit and enter information (in bulk). The Spreadsheet should provide the following functionality: standard table features like sort, hide/show columns, rearrange columns, group by (if applicable), global level undo/redo, add/insert/delete row, keyboard navigation, import and export.

09. Wizard

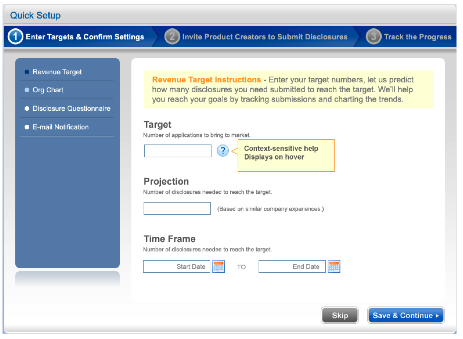

The Wizard/Quick Start screen pattern is ideal for creating an efficient user experience by guiding the user through a complex or infrequent workflow.

For examples,





10. Interactive Model

 The Interactive Model screen pattern is characterized by many interactive elements associated with the key object (a calendar, map, graph, chart, canvas). It is ideal for creating a user experience that is closely aligned with the user’s mental model (a natural fit). Excellent candidates for this pattern are: calendars, maps, gantt charts, what-if scenarios (including calculators), WYSIWYG editors (including photo editing).
